Minimal Sliding System

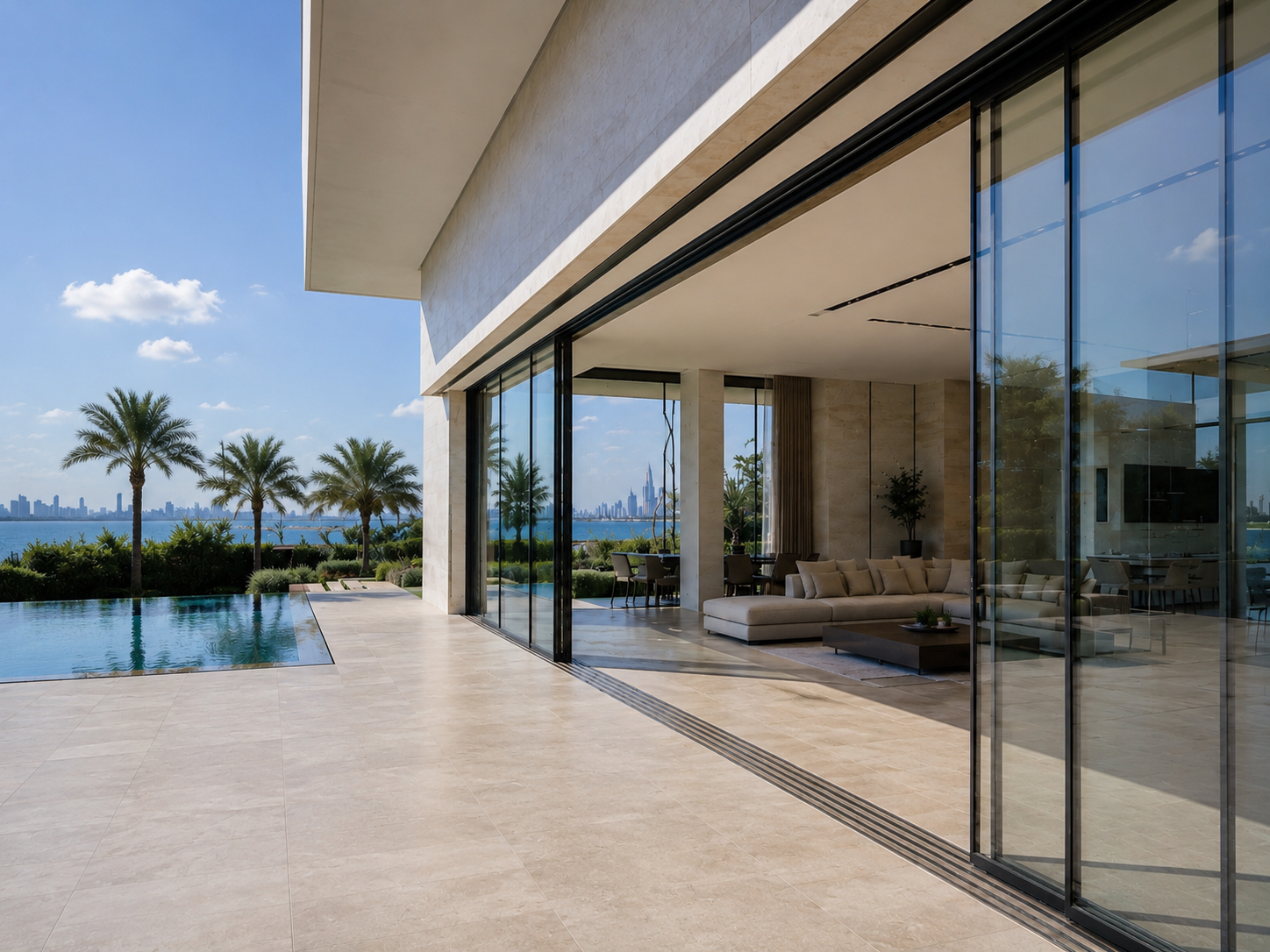

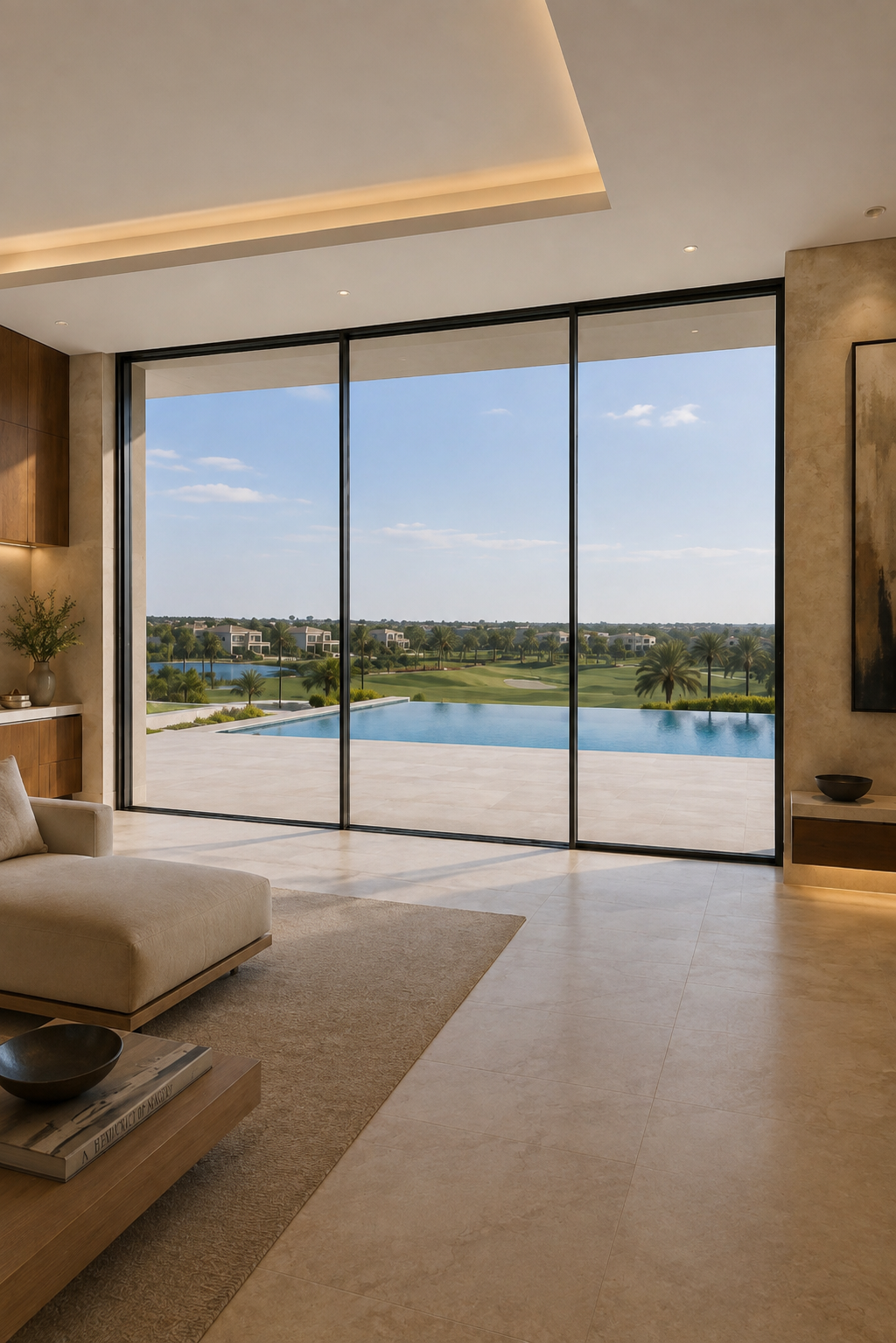

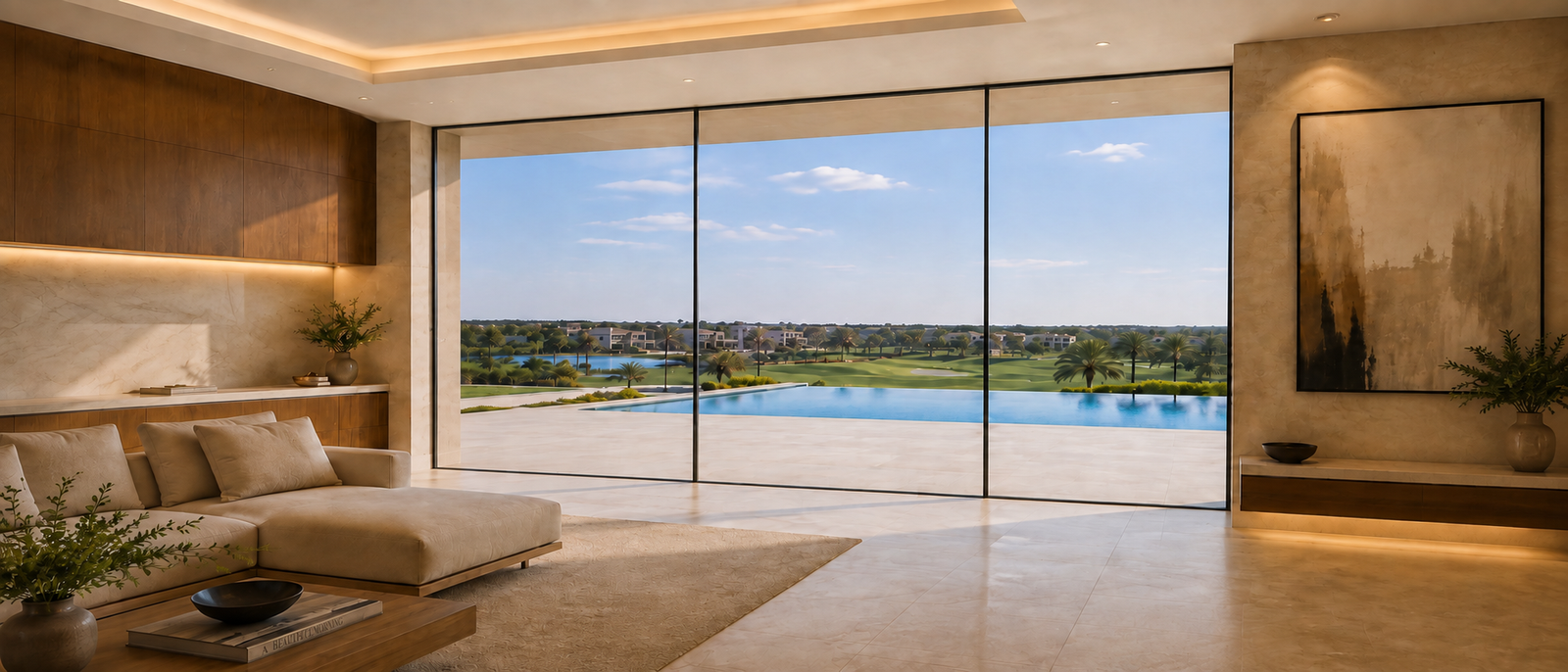

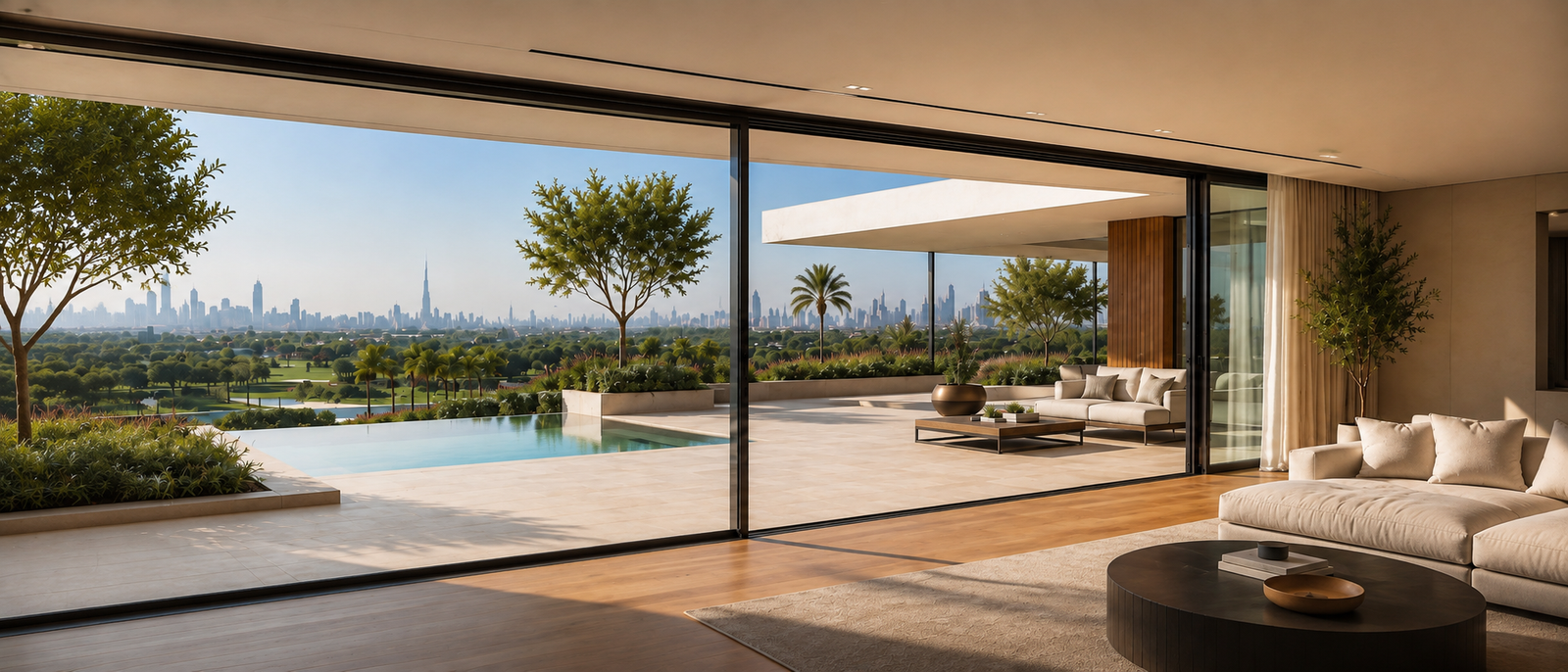

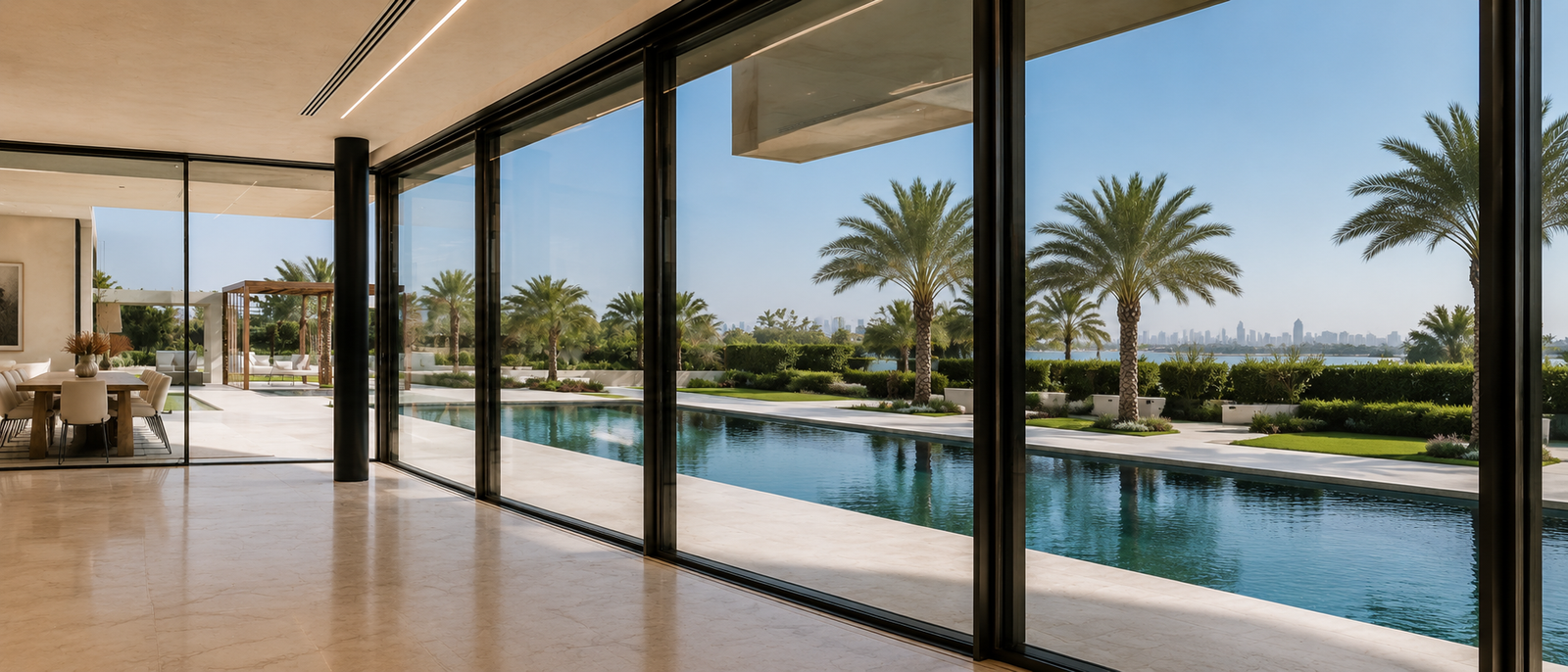

There is a particular kind of quiet that comes from a view with nothing in the way. Ultra-slim aluminium profiles recede to the edges, the frame concealed into the surrounding wall, floor, and ceiling until only a slim interlock remains — and even that is drawn as thin as engineering allows. What’s left is glass, scale, and a connection between inside and outside with almost nothing standing between them.

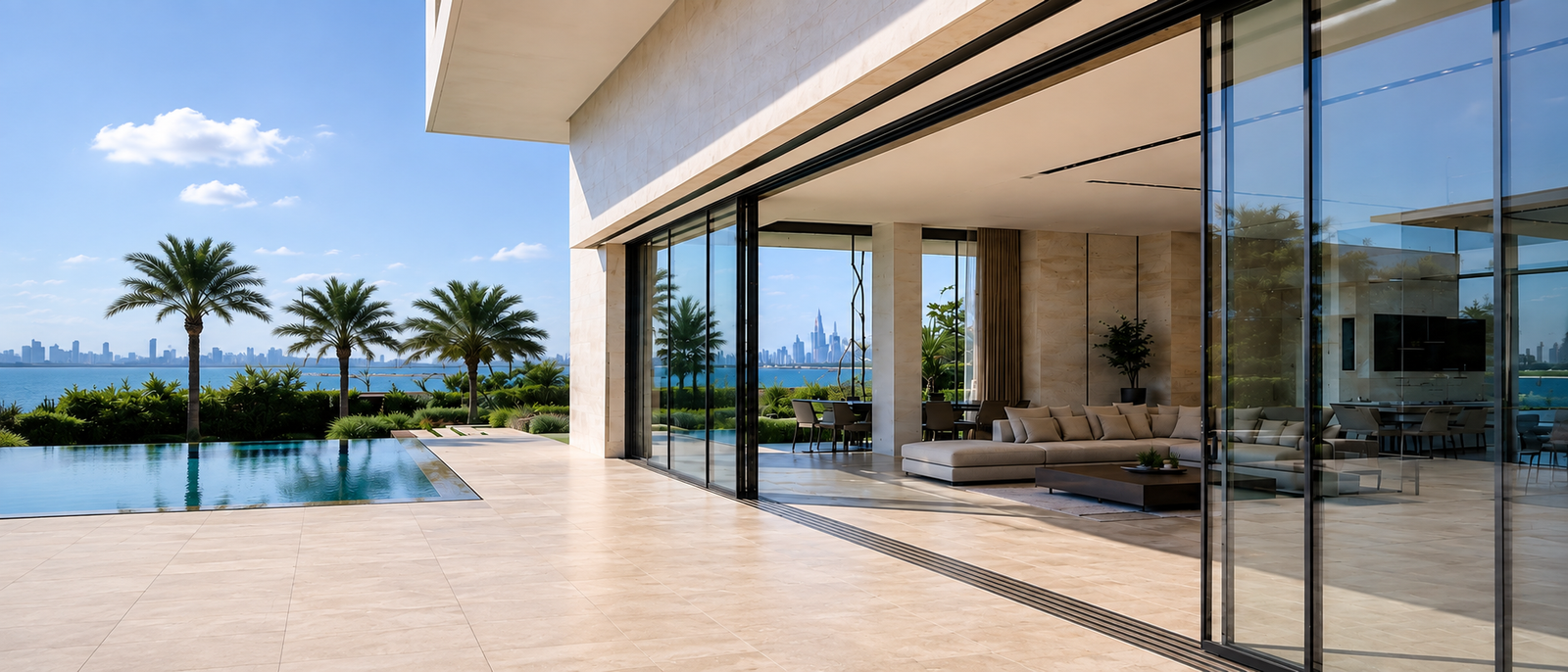

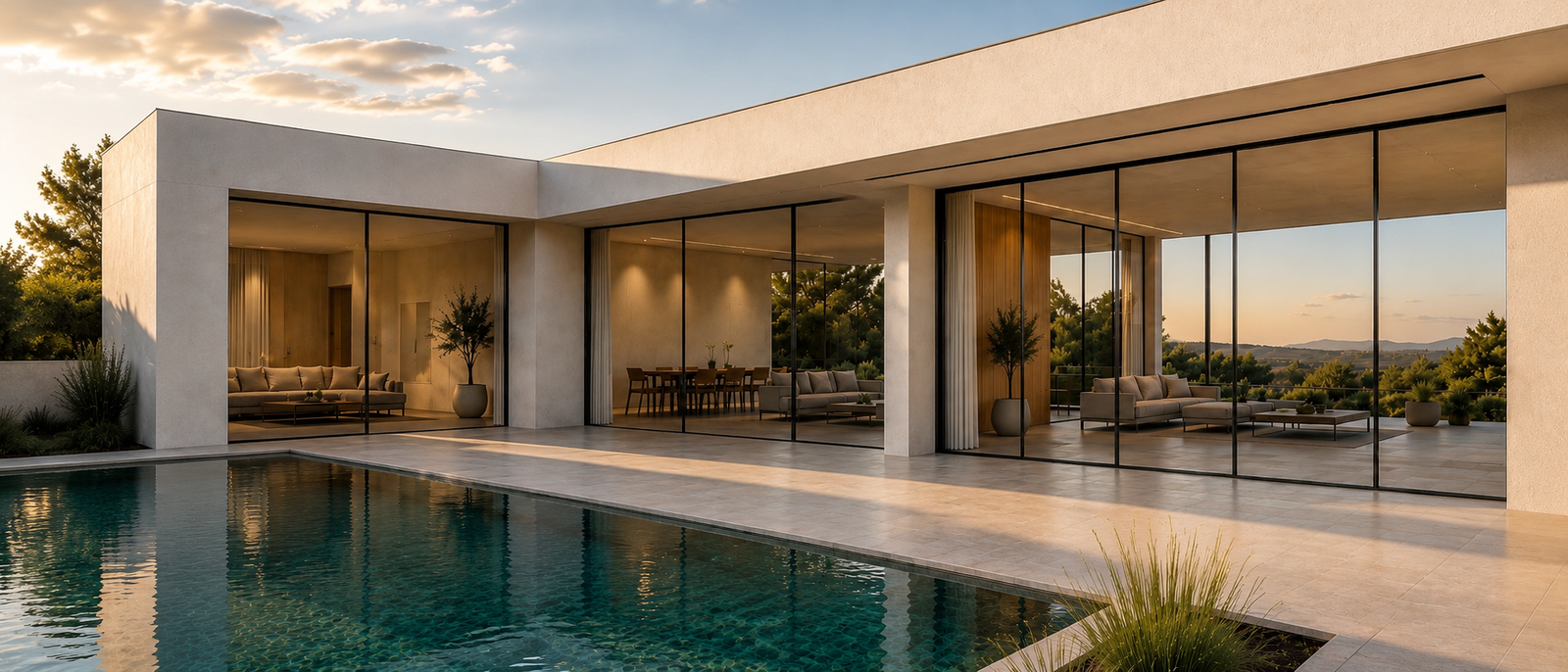

That restraint carries real weight behind it. Multi-chamber thermally broken profiles, heavy-duty stainless steel rollers, and precision-engineered tracks are built to move panels up to a tonne in weight with the same ease as something a fraction of the size. It is a system for spaces that were designed around the view first — luxury villas, premium hospitality projects, and contemporary residences where the architecture disappears so the landscape doesn’t have to.

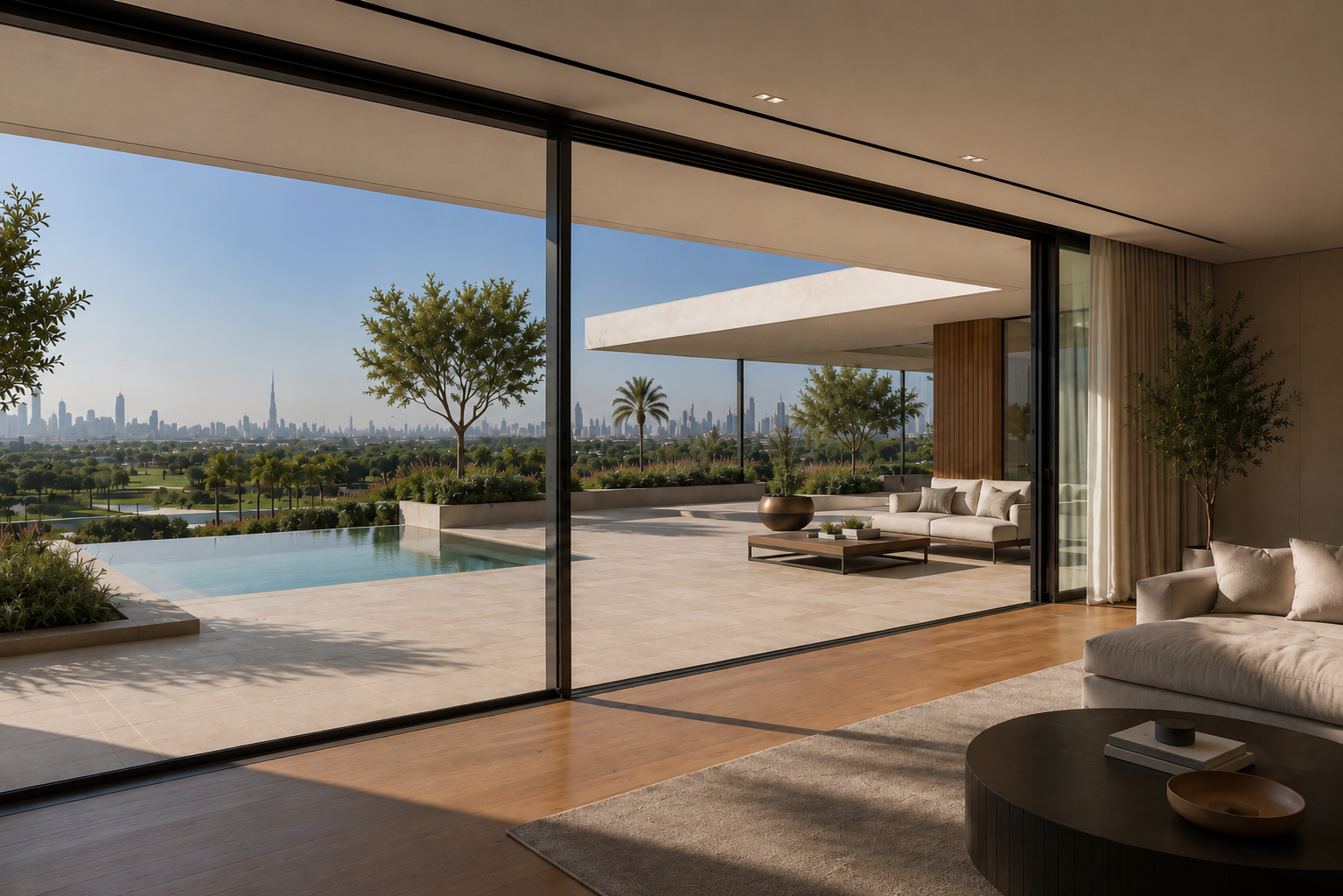

1. Ultra-Slim Sightlines
Minimal visible aluminium profiles maximize glass surface area, creating unobstructed views and a seamless connection between interior and exterior spaces.
2. Concealed Frame Design
The perimeter frame integrates into the surrounding wall, floor, and ceiling, leaving only the central interlock and a slim perimeter visible — the rest simply disappears into the architecture.

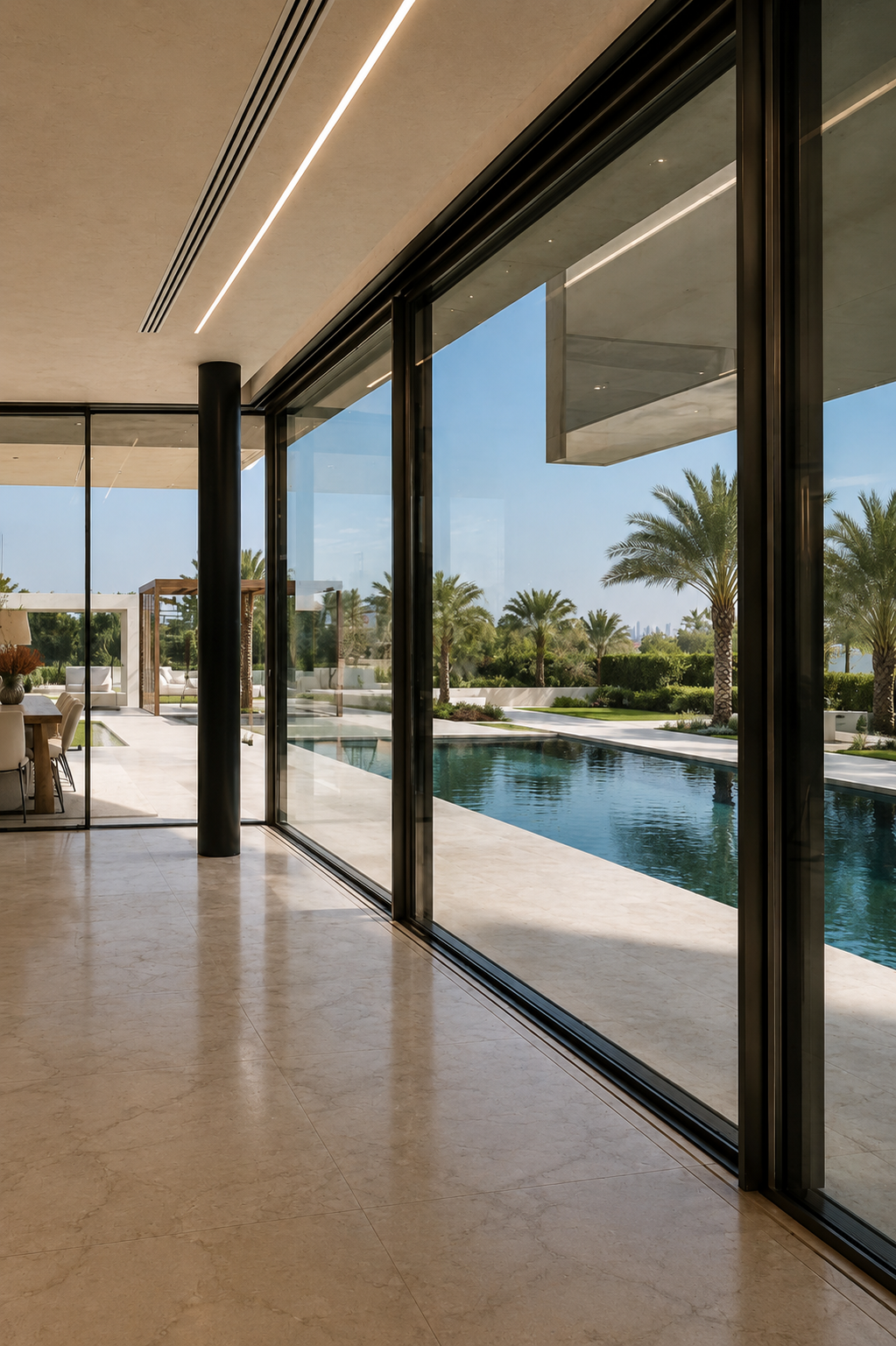

3. Large Glass Panels
The system is engineered to accommodate oversized glazing panels while holding full structural stability and effortless operation, even at scale.
4. Thermally Broken Aluminium Profiles
Multi-chamber profiles with advanced polyamide thermal breaks reduce heat transfer and keep energy efficiency high, regardless of how much glass the opening carries.

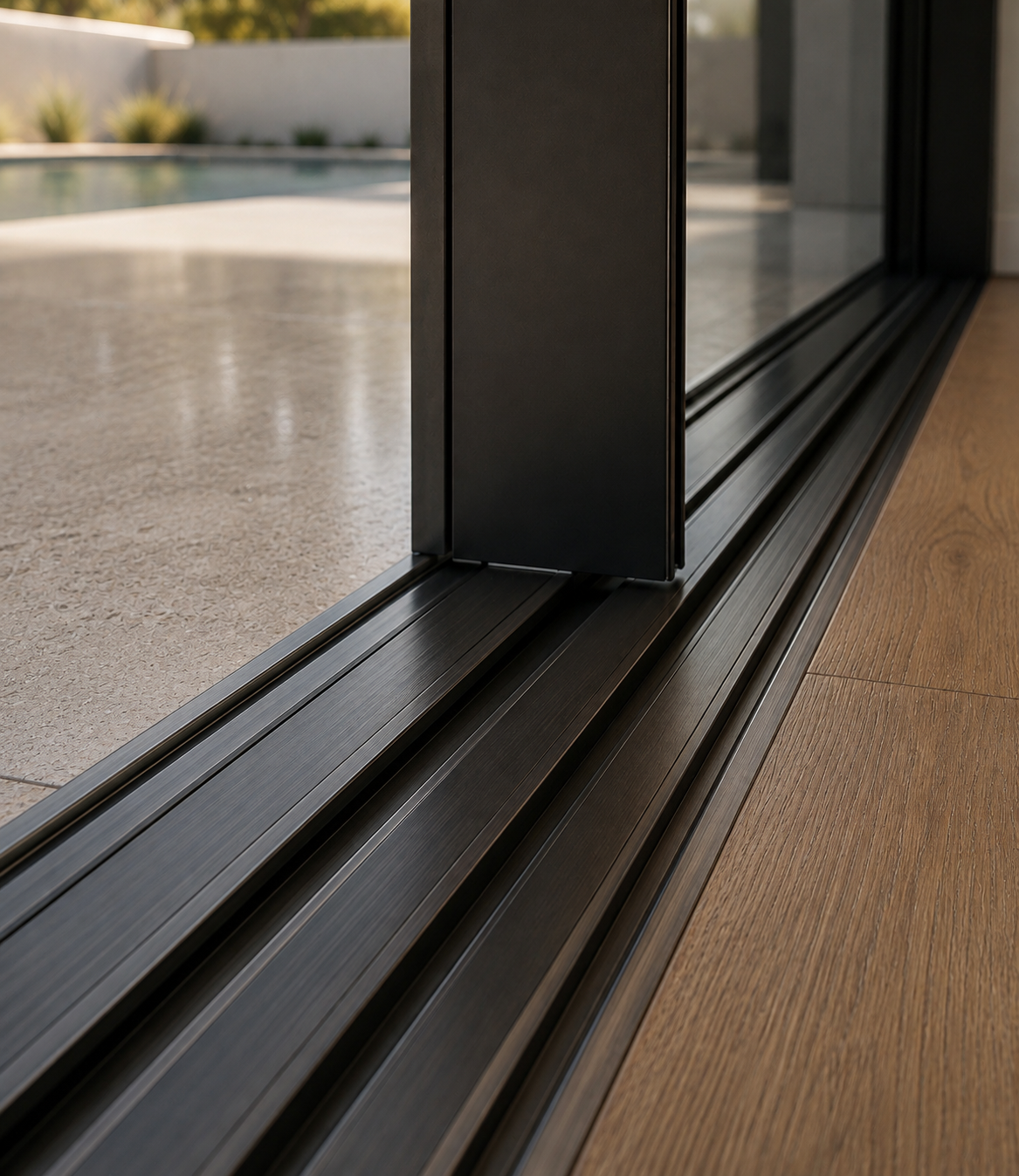

5. Smooth Sliding Operation

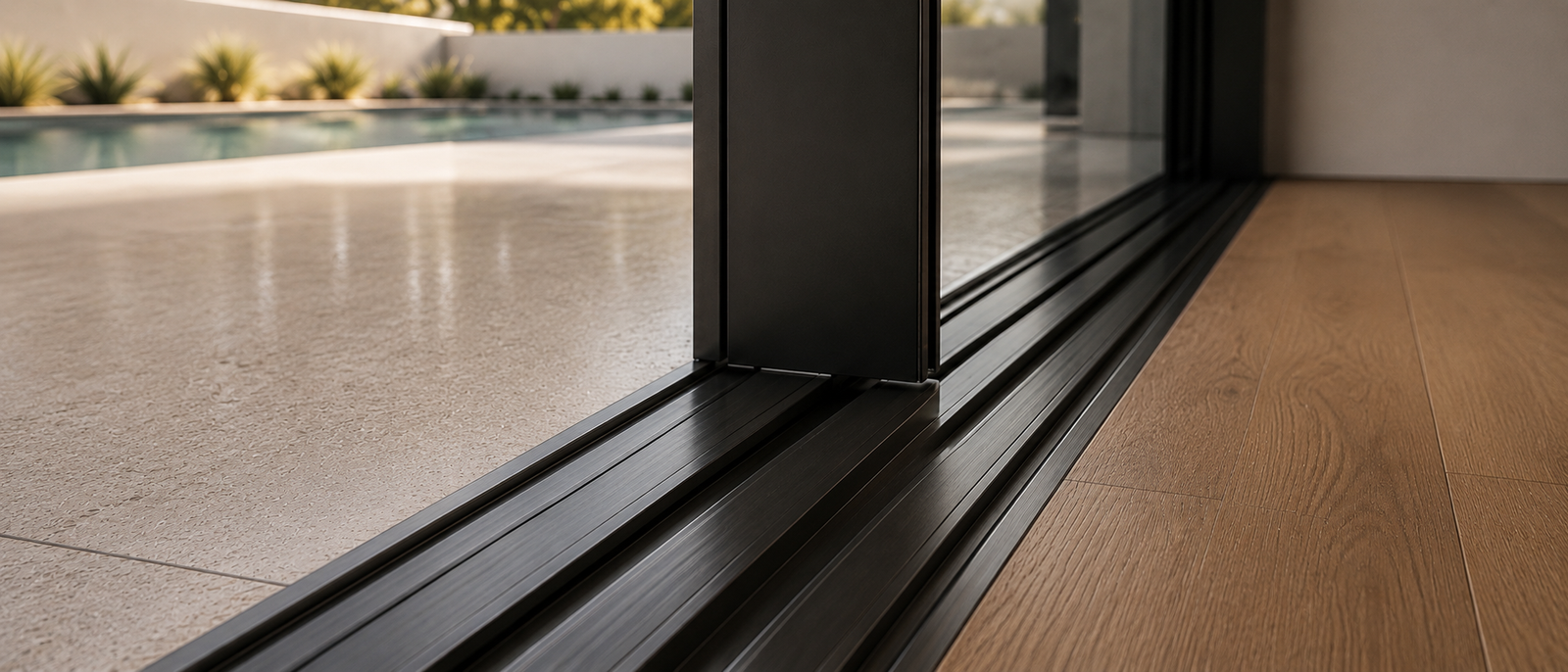

Heavy-duty stainless steel rollers and precision-engineered tracks deliver effortless, quiet movement, even when moving the largest glass panels the system supports.
6. Contemporary European Design
Clean lines, flush detailing, and premium finishes give the system a minimalist architectural presence suited to both residential and commercial projects.
Technical Specifications
| Specification | Details |
|---|---|
| System Type | Minimal Sliding Window |

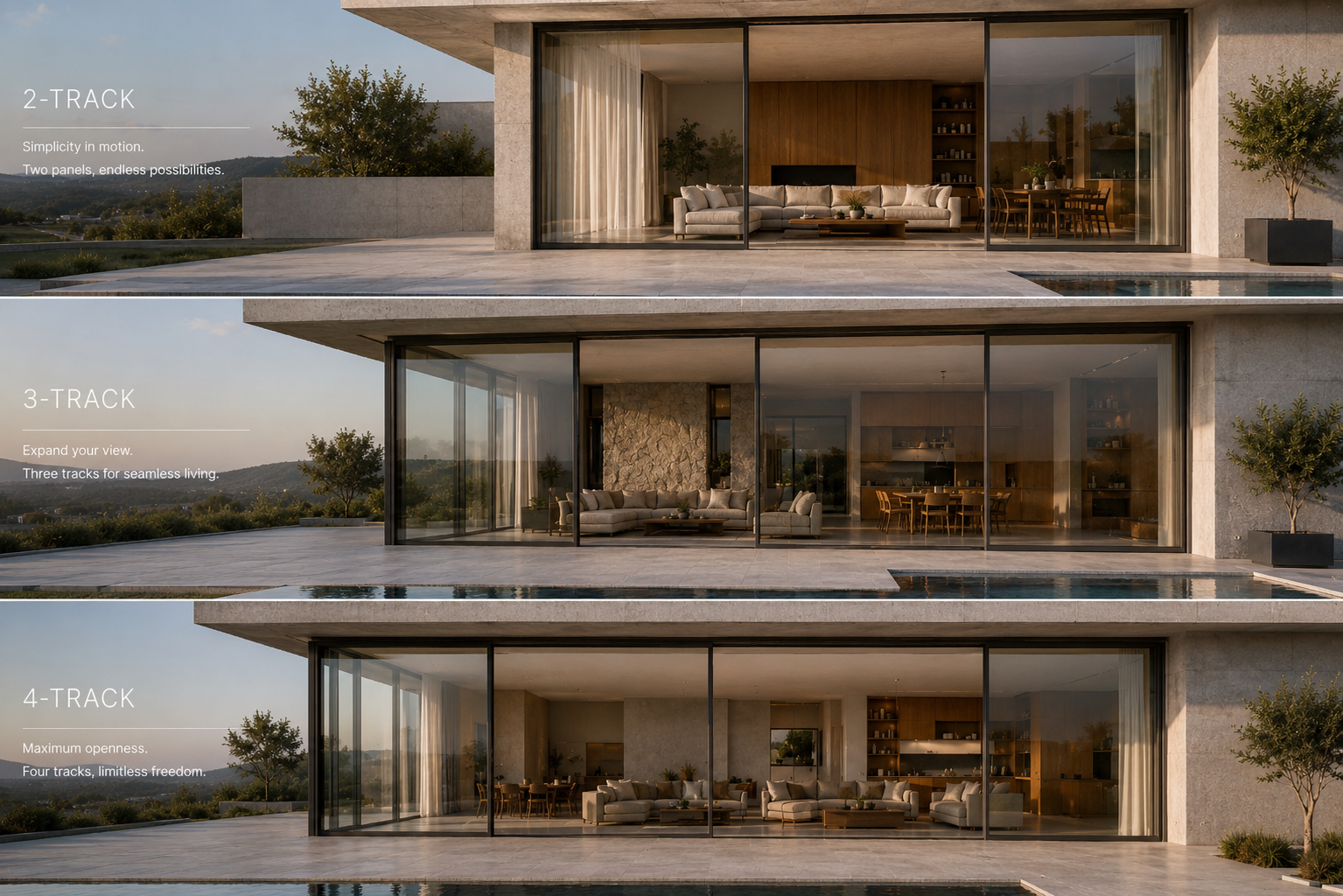

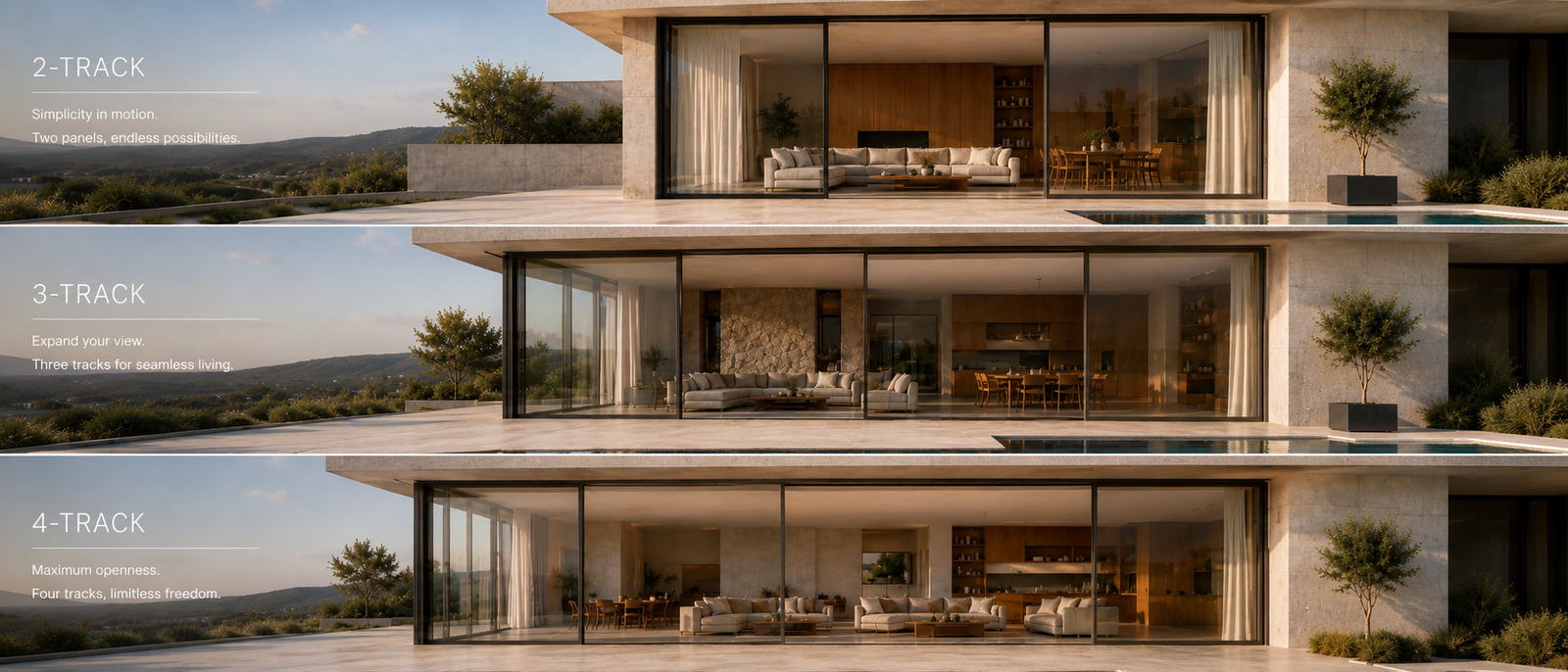

| Opening Options | 2 Track, 3 Track, 4 Track, Pocket Sliding, Corner Opening |
| Frame Depth | 120–190 mm |
| Interlock Sightline | 20–35 mm |
| Visible Frame | As low as 25–40 mm (depending on installation) |
| Aluminium Alloy | EN AW-6060 T66 / EN AW-6063 T6 |
| Aluminium Thickness | 2.0–3.0 mm |
| Thermal Break | 30–42 mm Glass Fibre Reinforced Polyamide (PA66 GF25) |
| Maximum Panel Height | Up to 4,000 mm |
| Maximum Panel Width | Up to 3,500 mm |
| Maximum Panel Weight | Up to 1,000 kg |
| Surface Finish | Qualicoat Powder Coating, Anodized, Wood Effect Sublimation |
| Standard Colours | RAL 7016, RAL 9005, RAL 9016, Bronze, Champagne, Custom RAL Colours |
Glazing Options
- Double Glazing: 24–44 mm, Low-E coating, argon gas filled, warm edge spacer
- Triple Glazing: 44–60 mm, superior thermal insulation, enhanced acoustic performance
- Glass types: clear, low-iron, laminated safety, toughened safety, solar control, reflective, tinted, frosted, decorative
Thermal Performance
| Performance | Value |
|---|---|
| Whole Window U-Value (Uw) | As low as 0.8 W/m²K |
| Glass U-Value (Ug) | As low as 0.5 W/m²K |
| Thermal Break | 30–42 mm Polyamide |
Weather Performance
| Test | Performance |
|---|---|
| Air Permeability | EN 12207 – Class 4 |
| Water Tightness | EN 12208 – Up to E1200 |
| Wind Resistance | EN 12210 – Up to Class C5 |
| Acoustic Performance | Up to 45 dB |
| Thermal Insulation | EN ISO 10077 Compliant |
European Standards Compliance
| Standard | Description |
|---|---|
| EN 14351-1 | Windows and External Pedestrian Doorsets |
| EN 12207 | Air Permeability |
| EN 12208 | Water Tightness |
| EN 12210 | Wind Resistance |
| EN ISO 10077 | Thermal Performance |
| EN 1191 | Mechanical Durability |
| EN 1627 | Burglar Resistance |
| EN 356 | Security Glazing |
| EN 1279 | Insulating Glass Units |
| EN 1096 | Coated Glass |
| EN 12150 | Toughened Safety Glass |
| EN 14449 | Laminated Safety Glass |
Security Features
Multi-point locking mechanism, concealed locking hardware, anti-lift protection, laminated safety glazing compatibility, toughened safety glass compatibility, RC2 security configurations available.
Hardware Options
Heavy-duty stainless steel rollers, concealed roller assemblies, stainless steel tracks, soft-close mechanism, soft-open mechanism, flush handles, recessed handles, multi-point locking, smart lock compatibility, automated sliding systems (optional).

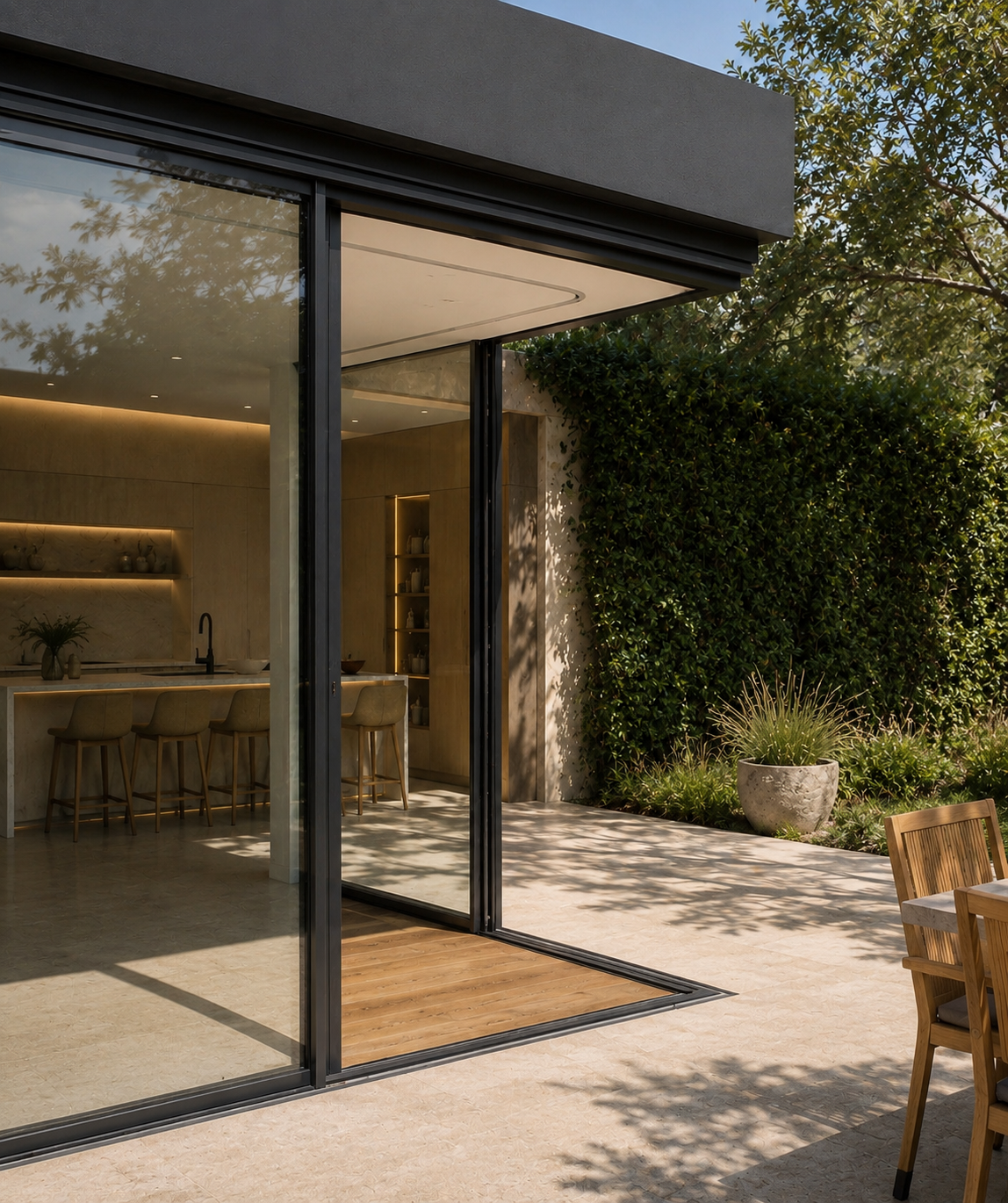

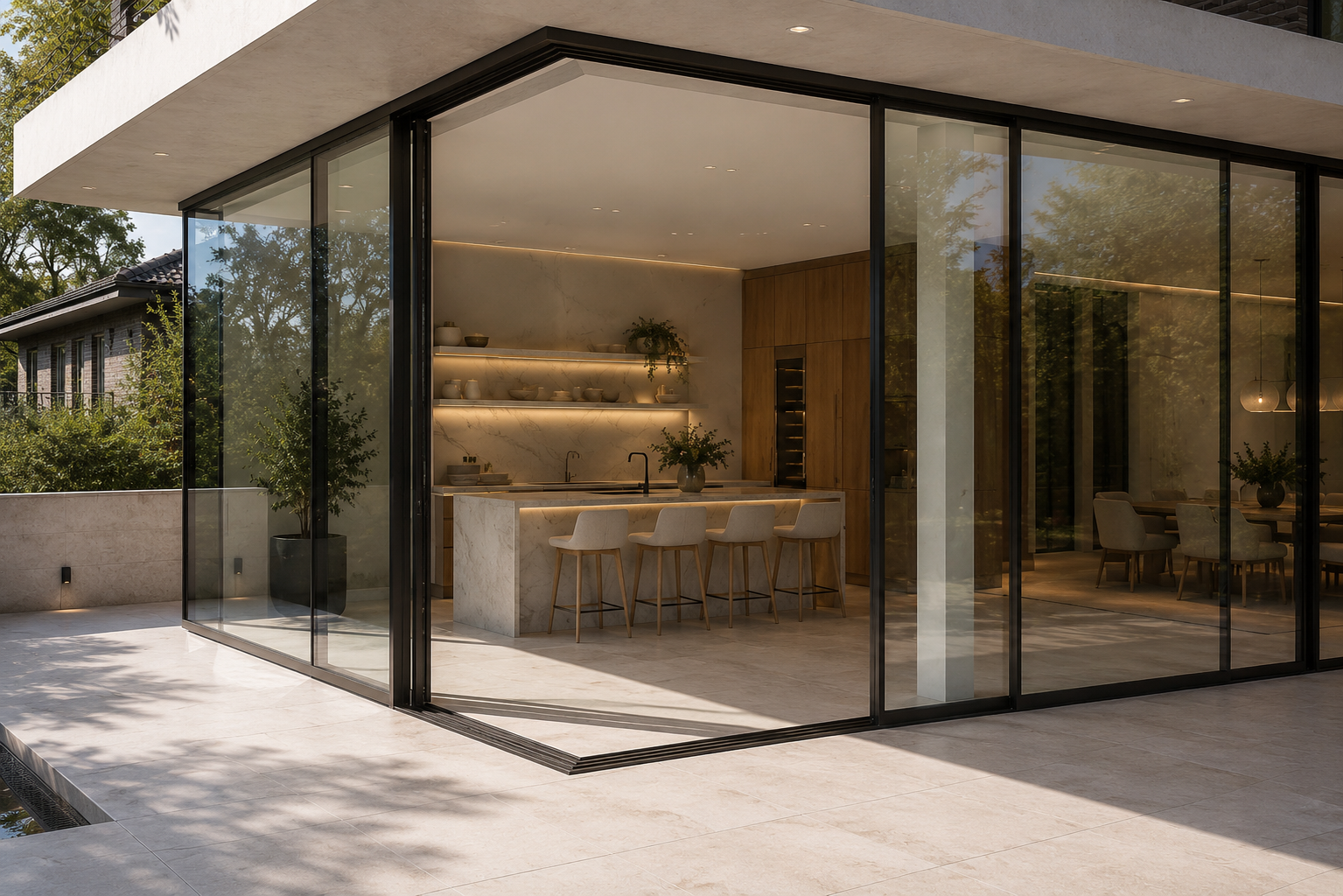

Available Configurations

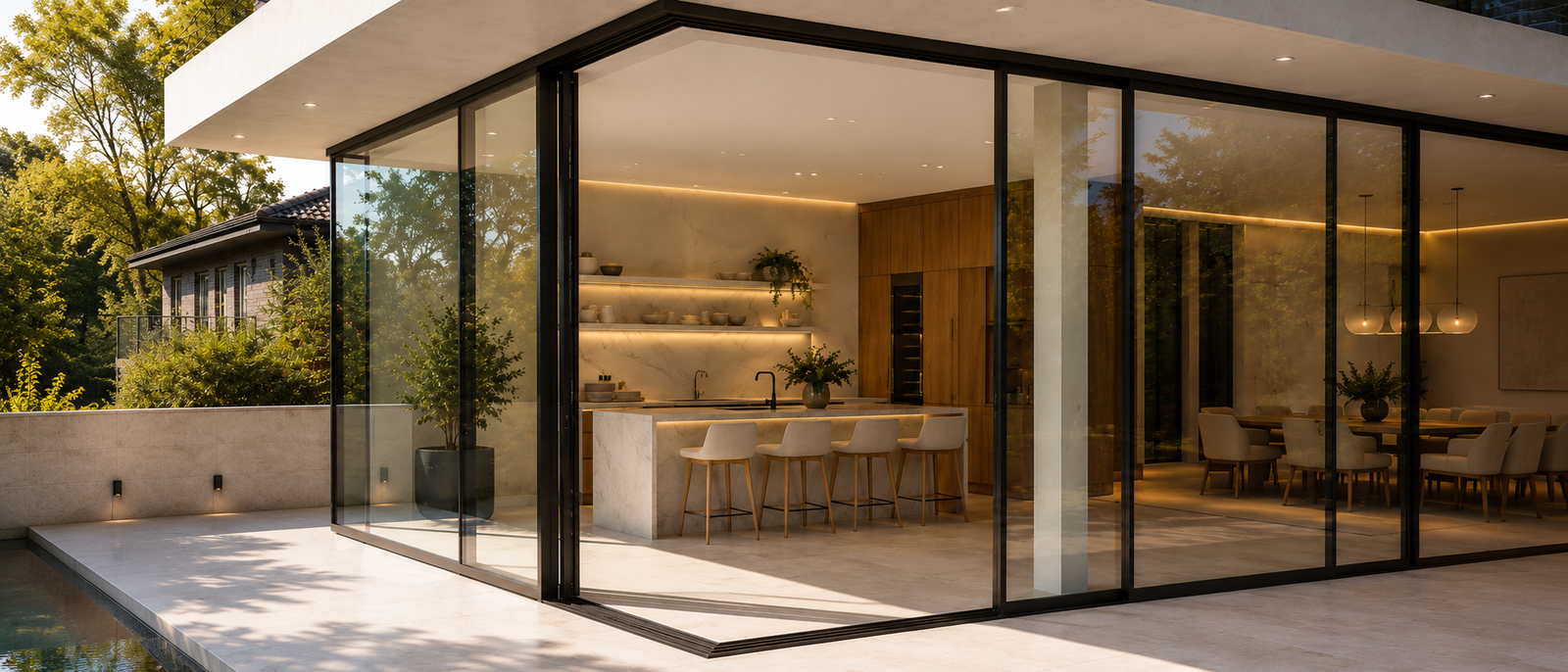

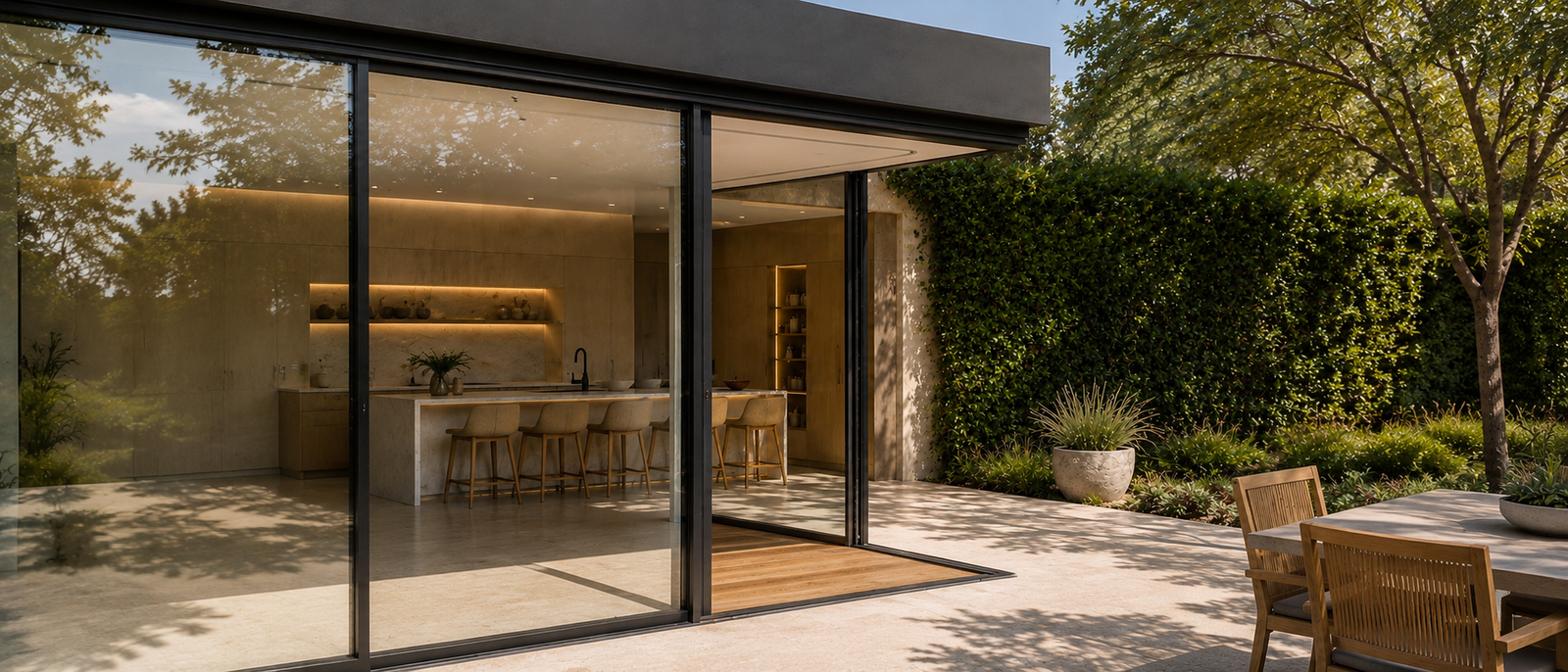

2 panel sliding, 3 panel sliding, 4 panel sliding, multi-track sliding, pocket sliding, corner opening system, fixed + sliding combination, floor-to-ceiling glazing, large format panoramic windows.
